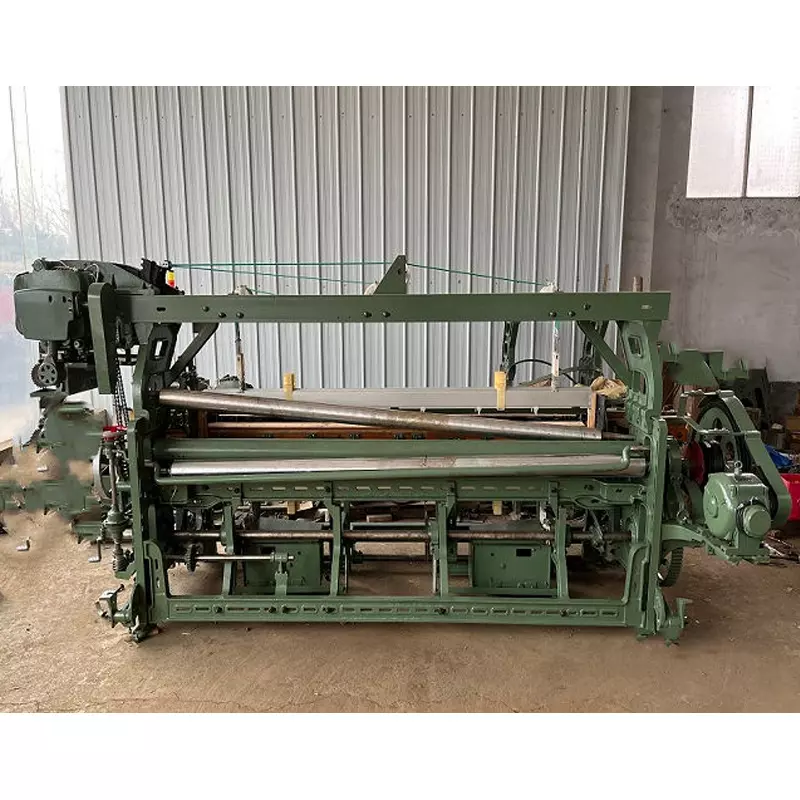

automatic changing shuttle
tappet shedding motion
seven gear take-up
outside let-off
SPECIFICATION:
1．Type---Under picking type, non-stop and auto-changing
2．Hand type: R·H and L·H
3. reed space56"60 63"75"
4. crank shaft speed : 145-190rpm
5. Angle between reed and shuttle plate:86°30
6. Device system: belt pully driven by motor with triangle type belt.
7. Motor model: model Fo-53-6N: 0.8Kw .960r/min ,
8. Shuttle box type: 1x1
9. Shedding device: tappet shedding or dobby
10．Let off motion : warp feeding automatically positively or semi-positively, swelling strength-compensated warp feeding.
11．Rolling type: seven teeth interval rolling, max rolling dia: 300mm
12. Weft stop motin :side fork or weft feeler electrical control.
